DBI Sala 7400008 SecuraSpan Multi-Span Bypass Bracket Kit: DBI Salla SecuraSpan Horizontal Lifeline Systems

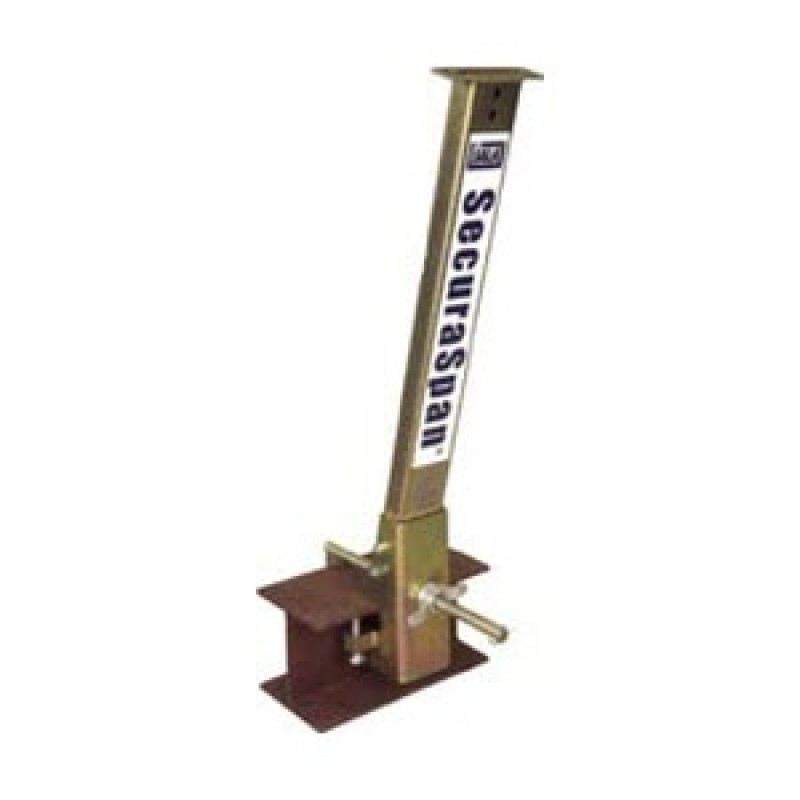

The SecuraSpan Horizontal Lifeline System was developed to provide an economical and safe solution to non-engineered homemade HLL systems. The system and all components have been rigoroustly tested to exceed the unique dynamic, performance and strength requirements involved with horizontal lifeline systems. The extremely lightweight stanchions can be configured into a complete engineered fall protection system for steel erectors. With the optional Bypass Bracket, (P/N: 7400008) the system can be configured to run indefinitely for ultimate jobsite flexibility. Spans between intermediates can be as great as 60' depending upon clearance requirements. 20', (P/N: 7400120) 30', (P/N: 7400130) and 60' (P/N: 7400160) Systems are available. The standard SecuraSpan Stanchion fits beam flange widths up to 12" width and up to 2 1/4" thick. Optional Base Clamps are available to fit flange widths up to 18" (P/N: 7400009), 24" (P/N: 7400010) and 36" (P/N: 7400011) for the ultimate in system adjustability. Installation is simple, fast and efficient with a single clamp anchor on the stanchion base. Utilizing the clamp hook, simply slide it snug to the beam flange, tighten the wingnut and the installation is complete. The unique high strength design does not require tedious tie-back anchoring saving time and reducing trip and fall hazards. Total installation is 50% quicker than competitive systems which often require two clamp assemblies and tie-back anchoring. One worker can easily move this temporary system from one location to another for added productivity. SecuraSpan Horizontal Lifeline Systems sold separately. Multi-Span Bypass Bracket Kits sold individually.

Product Features:
